SHANDONG JUHUO SPECIAL STEEL CO., LTD.

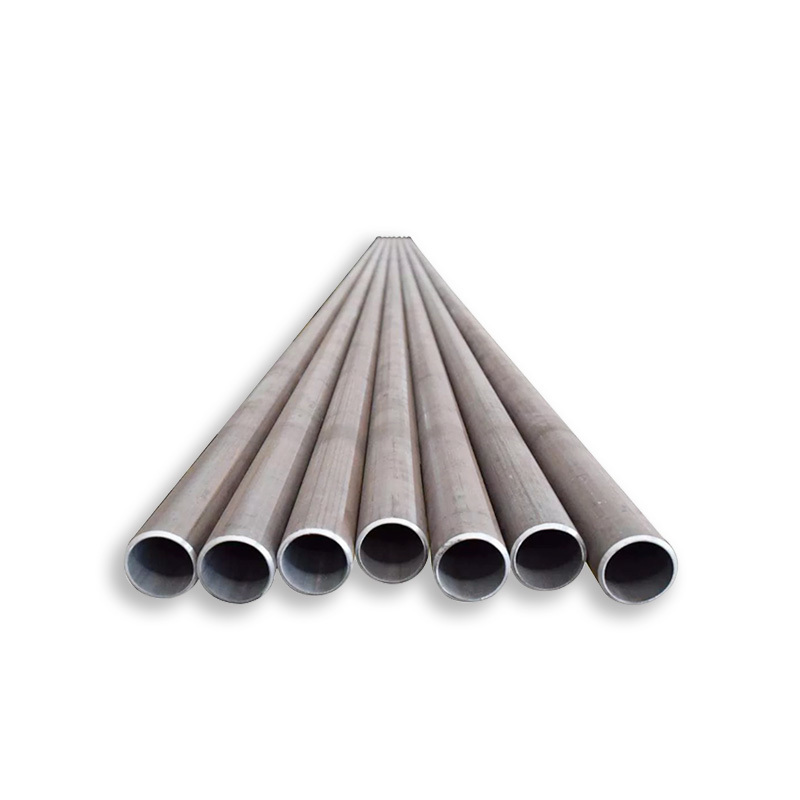

API 5CT Steel Pipe
API is an acronym for the American Petroleum Institute and is considered the most authoritative and comprehensive principle in the oil and gas industry. API 5B and API 5CT are mainly used for oil casing. API 5CT oil casing can be divided into seamless steel pipe and welded steel pipe, welded steel pipe mainly refers to the straight seam steel pipe, large diameter oil casing is generally submerged arc welding straight seam steel pipe.
Category:
Carbon Steel Pipe
Keywords:
API 5CT Steel Pipe
Leave your contact information and we will provide you with a preferential price for this product.
DETAILS DESCRIPTION
API 5CT Steel Pipe Description
API is an acronym for the American Petroleum Institute and is considered the most authoritative and comprehensive principle in the oil and gas industry. API 5B and API 5CT are mainly used for oil casing. API 5CT oil casing can be divided into seamless steel pipe and welded steel pipe, welded steel pipe mainly refers to the straight seam steel pipe, large diameter oil casing is generally submerged arc welding straight seam steel pipe.
Product Parameters
|
Product Name |
API 5CT Steel Pipe |
|
|
Standard |
EN/DIN/JIS/ASTM/BS/ASME/AISI etc. |
|
|
Outer Diameter |
Seamless: 1/4"-36" |
Welding: 21.3mm-3620mm |
|
Round Tube: 1/2"-10" |
Square Tube/Rectangular Tube: 15x15mm-400x600mm |
|
|
Wall Thickness |
Seamless: 1.25mm-50mm |
Welding: 1.65mm-65mm |
|
Length |
3-12 meters, Support customization |
|
|
Surface Process |
Bright, Polished, Black |
|
|
Other Services |
Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. |
|
Chemical Composition
|
Grade |
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Cr≤ |
Ni≤ |
With: |
V≤ |
Als≤ |
|
API 5CT J55 |
0.34-0.39 |
0.20-0.35 |
1.25-1.50 |
0.020 |
0.015 |
0.15 |
0.20 |
0.20 |
/ |
0.020 |
|
API 5CT K55 |
0.34-0.39 |
0.20-0.35 |
1.25-1.50 |
0.020 |
0.015 |
0.15 |
0.20 |
0.20 |
/ |
0.020 |
|
API 5CT N80 |
0.34-0.38 |
0.20-0.35 |
1.45-1.70 |
0.020 |
0.015 |
0.15 |
/ |
/ |
0.11-0.16 |
0.020 |
|
API 5CT L80 |
0.15-0.22 |
1.00 |
0.25-1.00 |
0.020 |
0.010 |
12.0-14.0 |
0.20 |
0.20 |
/ |
0.020 |
|
API 5CT J P110 |
0.26-035 |
0.17-0.37 |
0.40-0.70 |
0.020 |
0.010 |
0.80-1.10 |
0.20 |
0.20 |
0.08 |
0.020 |
Mechanical Properties
|
Grade |
Yield Strength(Mpa) |
Tensile Strength(Mpa) |
|
API 5CT J55 |
379-552 |
≥ 517 |
|
API 5CT K55 |
≥ 655 |
≥ 517 |
|
API 5CT N80 |
552-758 |
≥ 689 |
|
API 5CT L80 |
552-655 |
≥ 655 |
|
API 5CT P110 |
758-965 |
≥ 862 |
Scope of Application
API 5CT oil casing is mainly used to transport oil, natural gas, coal gas, water and other liquids, gases.
PACKING AND DELIVERY
Packing and delivery
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements. At the same time, thecompany has also established a complete after-sales service system to providecustomers with first-class services.

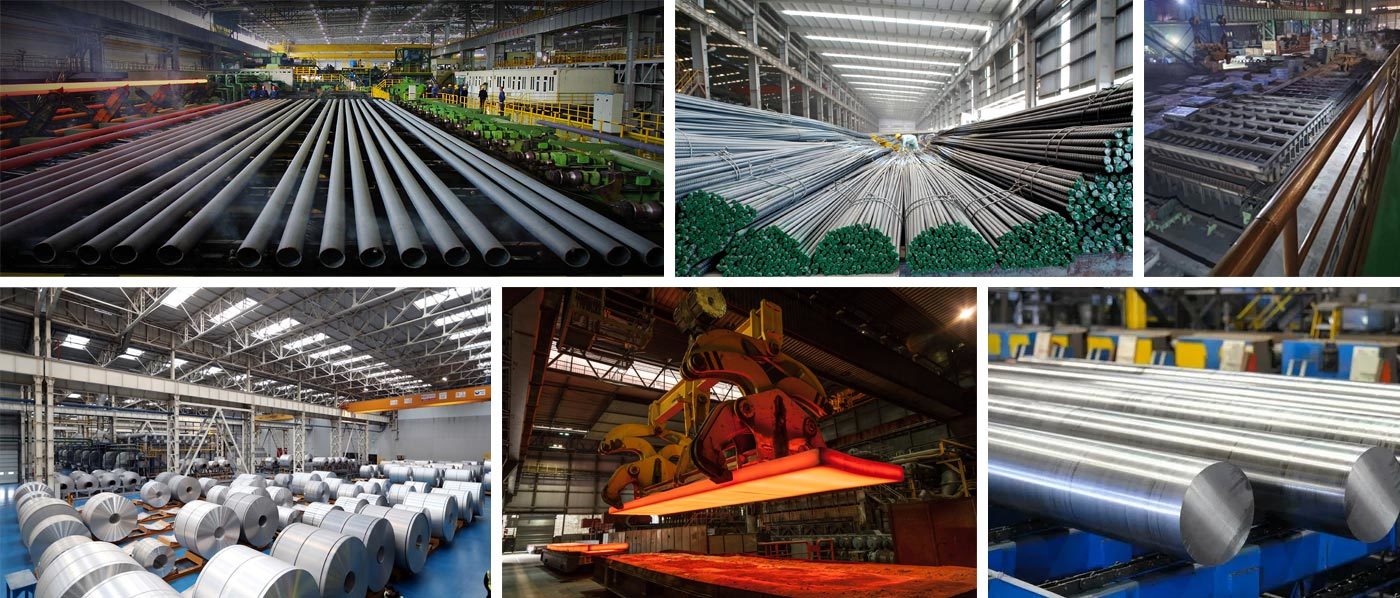

FACTORY APPEARANCE
Shandong Juhuo Special Steel Co., Ltd. is a comprehensive enterpriseintegrating steel supply and processing. The company has a large inventory ofvarious metal materials such as stainless steel, galvanized, profiles, aluminum.copper, lead, etc, which can meet the needs of customers in different fields.
APPLICATION AREAS
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements.
CUSTOMER VISIT
FAQ
Do you provide samples Is it free or extra?
A: Yes, we could offer free samples.
What certifications do your products have?
A: We have ISO 9001, SGS, EWC and other certifications.
What is the delivery time?
A: 10-15 days
What is your MOQ?
A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
Once the products received by customer were found not comply with the products or contract demands, what will you do?
A: We will compensate the customer for all the loss without any hesitation.
What kind of payment terms would you accept?
A: We always do T/T.30% T/T as deposit,70% T/T as balance.
