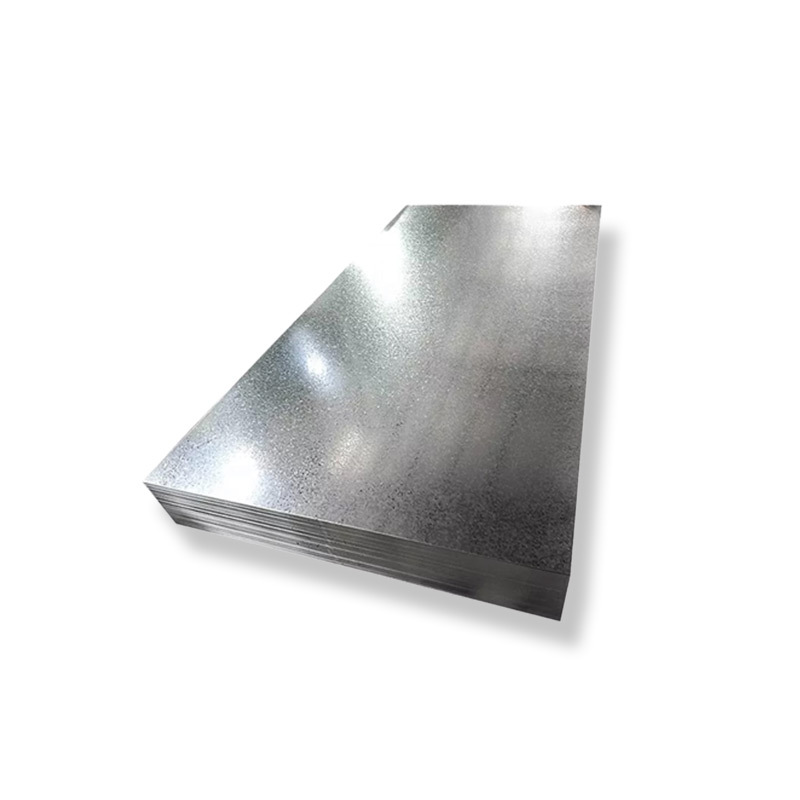

AZ150 Galvalume Steel Sheet
The thickness of AZ150 coating is 18 microns on one side and 36 microns on both sides. The coating alloy of the steel consists of 55% aluminium, 43.4 zinc and 1.6 silica. This coating of steel acts as a passive barrier to general corrosion. Once the sheet is exposed to electrolyte or moisture, another coating may form a galvanic cell. This exposure results in spillage of zinc ions and corrosion protection of the exposed steel. It also helps protect steel from trimmed edges and scratches.
Category:
Galvalume Steel Sheet
Keywords:
AZ150 Galvalume Steel Sheet
Leave your contact information and we will provide you with a preferential price for this product.
DETAILS DESCRIPTION
AZ150 Galvalume Steel Sheet Description
The thickness of AZ150 coating is 18 microns on one side and 36 microns on both sides. The coating alloy of the steel consists of 55% aluminium, 43.4 zinc and 1.6 silica. This coating of steel acts as a passive barrier to general corrosion. Once the sheet is exposed to electrolyte or moisture, another coating may form a galvanic cell. This exposure results in spillage of zinc ions and corrosion protection of the exposed steel. It also helps protect steel from trimmed edges and scratches.
AZ150 is a hot-dip aluminum-zinc alloy coated steel. The resulting coating has excellent corrosion resistance and can be used in harsh environments. This combination produces a durable and corrosion-resistant material that can be used in any application with high strength or hardness. AZ150 aluminized zinc is a high-quality, corrosion-resistant alloy commonly used in the construction and transportation industries. It has strong anti-rust, anti-oxidation and anti-corrosion capabilities, and is an option for those who need to transport items or expose items to severe weather conditions.
Scope of Application
Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.
Product Parameters
|
Product Name |
AZ150 Galvalume Steel Sheet |
|
Thickness |
0.12mm-6.00mm |
|
Width |
600mm-1500mm |
|
Length |
1m-12m, Support Customization |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
|
Thickness of Aluminum Zinc Coating |
30-185g/m² |
|
Content of Al-Zn Coating |
Al: 55%, Zn: 43.5%, Si: 1.5% |
Chemical Composition
|
Al |
Zn |
Si |
Fe |
Cu |
Cd |
Pb |
Sn |
Ni |
Close Cr |
|
55-58 |
41-43 |
1.5-2 |
0.25 |
0.03 |
0.05 |
0.01 |
0.05 |
0.05 |
0.05 |
Mechanical Properties
|
Grade |
Yield Strength MPa≥ |
Tensile Strength MPa≥ |
Elongation A%≥ |
|
DX51D Z/ZM/AZ/AM |
240-380 |
270-500 |
22 |
|
DX52D Z/ZM/AZ/AM |
140-300 |
270-420 |
26 |
|
DX53D Z/ZM/AZ/AM |
140-260 |
270-380 |
30 |
|
DX54D Z/ZM/AZ/AM |
120-220 |
260-350 |
36 |
|
S220GD Z/ZM/AM |
220 |
300 |
20 |
|
S250GD Z/ZM/AZ/AM |
250 |
330 |
19 |
|
S280GD Z/ZM/AM |
280 |
360 |
18 |
|
S300GD A/AM |
300 |
380 |
18 |
|
S320GD Z/ZM/AM |
320 |
390 |
17 |
|
S350GD Z/ZM/AZ/AM |
350 |
420 |
16 |
|
S450GD A/AM |
450 |
480 |
15 |
|
S550GD Z/ZM/AZ/AM |
550 |
550 |
- |
Galvanized Surface Selection
|
Zero Spangle |
Minimized Spangle |
Normal Spangle |
Large Spangle |
|
|
|
|
|
|
Type of Coating |
Recommended Coating Weight |
|
Aluminum-zinc Alloy |
30/40/50/60/75/90/100/150 |
|
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm |
|
|
Project |
Classification |
Symbol |
|
Type of Coating |
Aluminum-zinc Alloy |
AZ |
|
Surface Finish |
Conventional Sequins |
R |
|
Minimize Sequins |
M |
|
|
Skin Through |
S |
|
|
Surface Treatment |
Chromate Passivation |
c |
|
Non-chromate Passivation |
C5 |
|
|
Chromate Passivationoiling |
CO |
|
|
Chromium-free Passivationoiling |
CO5 |
|
|
Anti-fingerprint |
N |
|
|
Chromate-free/Anti-fingerprint |
N5 |
|
|
No chromate high weather resistance fingerprint |
NW |
|
|
Oil filling |
0 |
|
|
No treatment |
U |
Material Comparison
|
Chinese Standard |
European Standards |
American Standard |
Japanese Standard |
|
DC51D+AZ |
DX51D+AZ |
CS Type B, Type C |
SGLCC |
|
DC52D+AZ |
DX52D+AZ |
DS |
SGLCD |
|
S250GD+AZ |
S250GD+AZ |
255 |
- |
|
S300GD+AZ |
- |
- |
- |
|
S350GD+AZ |
S350GD+AZ |
345 |
Class1 SGLC490 |
|
S550GD+AZ |
S550GD+AZ |
550 |
SGLC570 |
PACKING AND DELIVERY
Packing and delivery
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements. At the same time, thecompany has also established a complete after-sales service system to providecustomers with first-class services.
FACTORY APPEARANCE
Shandong Juhuo Special Steel Co., Ltd. is a comprehensive enterpriseintegrating steel supply and processing. The company has a large inventory ofvarious metal materials such as stainless steel, galvanized, profiles, aluminum.copper, lead, etc, which can meet the needs of customers in different fields.
APPLICATION AREAS
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements.
CUSTOMER VISIT
FAQ
Do you provide samples Is it free or extra?
A: Yes, we could offer free samples.
What certifications do your products have?
A: We have ISO 9001, SGS, EWC and other certifications.
What is the delivery time?
A: 10-15 days
What is your MOQ?
A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
Once the products received by customer were found not comply with the products or contract demands, what will you do?
A: We will compensate the customer for all the loss without any hesitation.
What kind of payment terms would you accept?
A: We always do T/T.30% T/T as deposit,70% T/T as balance.
