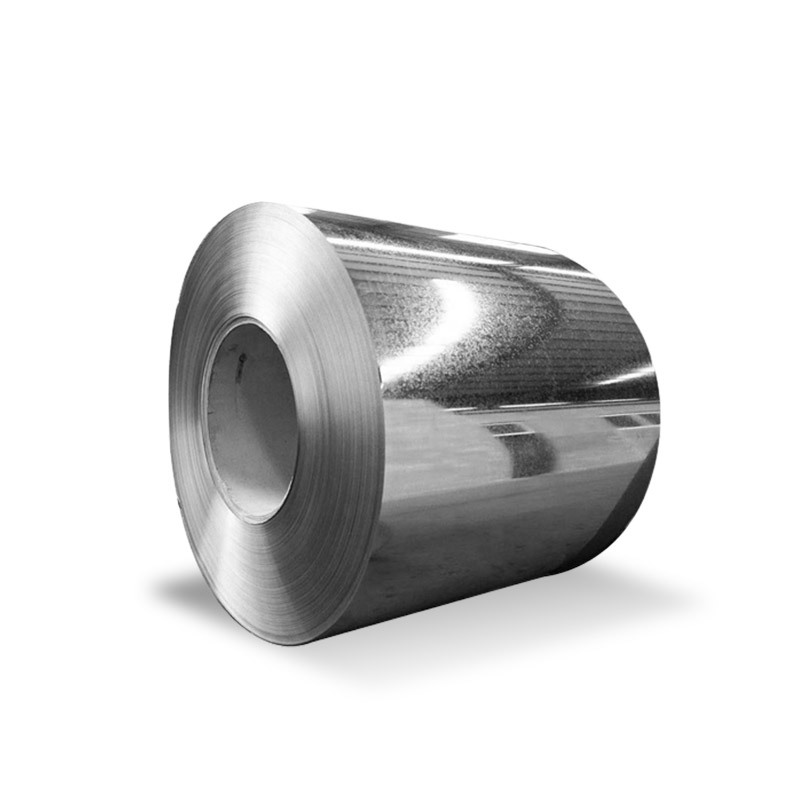

Z120 Galvanized Coil
Z120 is the coating name, which means that the coating thickness on both sides is approximately 120g/㎡ or 36g/㎡ (three-point test) and 90g/㎡ (single-point test). Z120 grade galvanized steel coil is coated with zinc to make it more durable. The working principle of the process is to immerse the coiled steel plate in a galvanizing tank filled with molten zinc. Through the continuous galvanizing process of the thin steel sheet, the galvanized coil is obtained. This type of steel has better formability and good paint adhesion in commercial or architectural use. Another method of producing galvanized steel sheet is through a hot-dip plating process. In this method, it is essential that the steel sheet is heat-treated at 500°C immediately after the exit of the can to form the alloy film coating.
Category:
Galvanized Steel Coil
Keywords:
Z120 Galvanized Coil
Leave your contact information and we will provide you with a preferential price for this product.
DETAILS DESCRIPTION
Z120 Galvanized Coil Description
Z120 is the coating name, which means that the coating thickness on both sides is approximately 120g/㎡ or 36g/㎡ (three-point test) and 90g/㎡ (single-point test).
Z120 grade galvanized steel coil is coated with zinc to make it more durable. The working principle of the process is to immerse the coiled steel plate in a galvanizing tank filled with molten zinc. Through the continuous galvanizing process of the thin steel sheet, the galvanized coil is obtained. This type of steel has better formability and good paint adhesion in commercial or architectural use. Another method of producing galvanized steel sheet is through a hot-dip plating process. In this method, it is essential that the steel sheet is heat-treated at 500°C immediately after the exit of the can to form the alloy film coating.
Scope of Application
Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.
Product Parameters
|
Product Name |
Z120 Galvanized Coil |
|
Thickness |
0.12mm-3.5mm |
|
Width |
600mm-1500mm |
|
Length |
508mm/610mm, Support Customization |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
|
Zinc Layer |
Hot Galvanizing: 60-275g/m² |
|
Pre-galvanized: 80-275g/m² |
Chemical Composition
|
Standard |
Grade |
C |
Si |
Mn |
P |
S |
Ti |
|
Forcold Forming Chinese Standard |
DX51D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
DX52D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX53D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX54D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX56D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
DX57D+Z |
0.12 |
0.50 |
0.60 |
0.100 |
0.045 |
0.30 |
|
|
Forcold Forming Japanese Standard |
SGCC |
0.15 |
0.50 |
0.80 |
0.050 |
0.030 |
0.025 |
|
SGCD1 |
0.12 |
0.50 |
0.60 |
0.040 |
0.030 |
0.025 |
|
|
SGCD3 |
0.08 |
0.50 |
0.45 |
0.030 |
0.030 |
0.025 |
|
|
SGCD4 |
0.06 |
0.50 |
0.45 |
0.030 |
0.030 |
0.025 |
|
|
For Structure Japanese Standard |
SGC340 |
0.25 |
0.50 |
1.70 |
0.200 |
0.035 |
0.025 |
|
SGC400 |
0.25 |
0.50 |
1.70 |
0.200 |
0.035 |
0.150 |
|
|
SGC490 |
0.30 |
0.50 |
2.00 |
0.200 |
0.035 |
0.025 |
|
|
SGC510 |
0.30 |
0.50 |
2.50 |
0.200 |
0.035 |
0.025 |
|
|
For Structure AISI Standard |
S220GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
S250GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S280GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S320GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.025 |
|
|
S350GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.150 |
|
|
S550GD+Z |
0.20 |
0.60 |
0.70 |
0.100 |
0.045 |
0.150 |
Mechanical Properties
|
Grade |
Yield Strength MPa≥ |
Tensile Strength MPa≥ |
Elongation A%≥ |
|
DX51D Z/ZM/AZ/AM |
240-380 |
270-500 |
22 |
|
DX52D Z/ZM/AZ/AM |
140-300 |
270-420 |
26 |
|
DX53D Z/ZM/AZ/AM |
140-260 |
270-380 |
30 |
|
DX54D Z/ZM/AZ/AM |
120-220 |
260-350 |
36 |
|
S220GD Z/ZM/AM |
220 |
300 |
20 |
|
S250GD Z/ZM/AZ/AM |
250 |
330 |
19 |
|
S280GD Z/ZM/AM |
280 |
360 |
18 |
|
S300GD A/AM |
300 |
380 |
18 |
|
S320GD Z/ZM/AM |
320 |
390 |
17 |
|
S350GD Z/ZM/AZ/AM |
350 |
420 |
16 |
|
S450GD A/AM |
450 |
480 |
15 |
|
S550GD Z/ZM/AZ/AM |
550 |
550 |
- |
Galvanized Surface Selection
|
Zero Spangle |
Minimized Spangle |
Normal Spangle |
Large Spangle |
|
|
|
|
|
|
Use of The Environment |
Recommended Zinc Thickness |
|
Indoor Use |
Z10 or Z12 (100g/㎡or 120g/㎡) |
|
Suburbs |
Z20 and Painting (200g/㎡) |
|
Urban or Industrial Area |
Z27 (270g/㎡) or G90 (US Standard) and painted |
|
Coastal Area |
Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted |
|
Punch or Deep Drawing Application |
Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping |
|
Surface Treatment Type |
Code |
Features |
|
Chromic Acid Treatment |
C |
Good corrosion resistance, suitable for bare state |
|
Chromic Acid Treatment+Oiling |
S |
Good corrosion resistance |
|
Phosphoric Acid Treatment (Including Sealing Treatment) |
P |
Have a certain corrosion resistance, good paint performance |
|
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling |
Q |
Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage |
|
Phosphoric Acid Treatment (Excluding Sealing Treatment) |
T |
Have a certain corrosion resistance, good paint performance |
|
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling |
V |
Has a certain corrosion resistance, good paint performance, and prevent rust |
|
Oiling |
O |
Prevent rust during transportation and storage |
|
No Treatment |
M |
Suitable for immediate painting |
Material Comparison
|
Chinese Standard |
Japan Standard |
European Standard |
|
DX51D Z/DC51D Z (CR) |
SGCC |
DX51D Z |
|
DX52D Z/DC52D Z |
SGCD1 |
DX52D With |
|
DX53D Z/DC53D Z/DX54D Z/DC54D Z |
SGCD2/SGCD3 |
DX53D Z/DX54D Z |
|
S220/250/280/320/350/550GD Z |
SGC340/400/440/490/570 |
S220/250/280/320/350GD Z |
|
DX51D Z/DD51D Z (HR) |
SGHC |
DX51D Z |
PACKING AND DELIVERY
Packing and delivery
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements. At the same time, thecompany has also established a complete after-sales service system to providecustomers with first-class services.
FACTORY APPEARANCE
Shandong Juhuo Special Steel Co., Ltd. is a comprehensive enterpriseintegrating steel supply and processing. The company has a large inventory ofvarious metal materials such as stainless steel, galvanized, profiles, aluminum.copper, lead, etc, which can meet the needs of customers in different fields.
APPLICATION AREAS
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements.
CUSTOMER VISIT
FAQ
Do you provide samples Is it free or extra?
A: Yes, we could offer free samples.
What certifications do your products have?
A: We have ISO 9001, SGS, EWC and other certifications.
What is the delivery time?
A: 10-15 days
What is your MOQ?
A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
Once the products received by customer were found not comply with the products or contract demands, what will you do?
A: We will compensate the customer for all the loss without any hesitation.
What kind of payment terms would you accept?
A: We always do T/T.30% T/T as deposit,70% T/T as balance.
