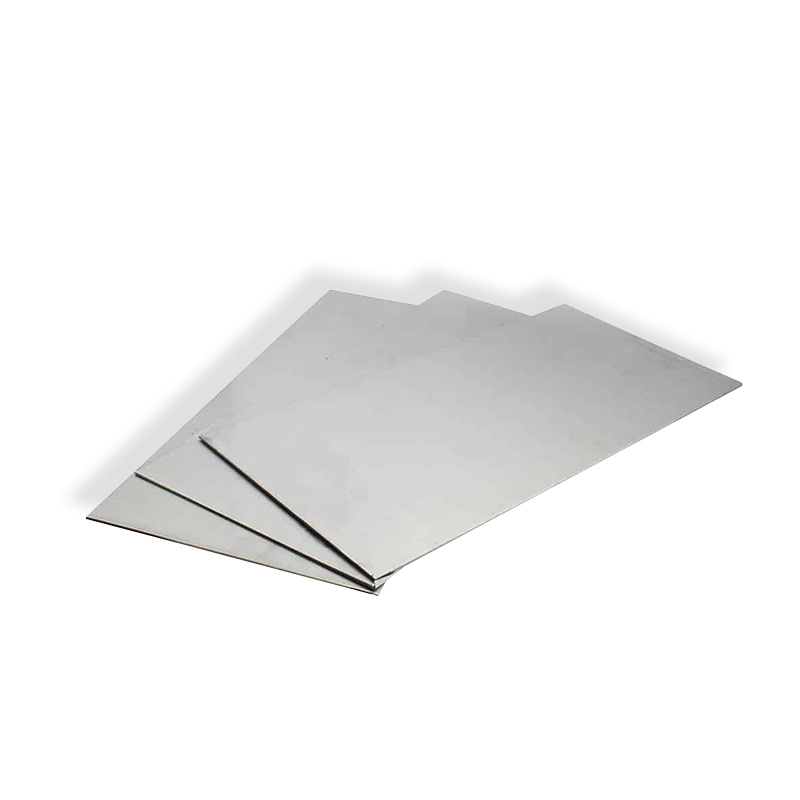

420 Stainless Steel Plate
420 is a hardenable martensitic stainless steel that contains at least 12% chromium, just enough to provide corrosion resistance. It has good ductility in the annealed condition, but can be hardened to a minimum Rockwell hardness of 50 HRC, which is the highest hardness in the 12% chromium scale. Due to its hardening properties, 420 are not often welded, although this is possible. Martensitic stainless steel is designed for high hardness, and sometimes other properties will be affected to a certain extent. The corrosion resistance is lower than that of ordinary austenite grades, and its effective operating range is limited by its ductility loss at sub-zero temperatures and strength loss due to excessive tempering at high temperatures. The best corrosion resistance is obtained when the metal is hardened and subjected to surface grinding or polishing.
Category:
Stainless Steel Plate
Keywords:
420 Stainless Steel Plate
Leave your contact information and we will provide you with a preferential price for this product.
DETAILS DESCRIPTION
420 Stainless Steel Plate Description
420 is a hardenable martensitic stainless steel that contains at least 12% chromium, just enough to provide corrosion resistance. It has good ductility in the annealed condition, but can be hardened to a minimum Rockwell hardness of 50 HRC, which is the highest hardness in the 12% chromium scale. Due to its hardening properties, 420 are not often welded, although this is possible. Martensitic stainless steel is designed for high hardness, and sometimes other properties will be affected to a certain extent. The corrosion resistance is lower than that of ordinary austenite grades, and its effective operating range is limited by its ductility loss at sub-zero temperatures and strength loss due to excessive tempering at high temperatures. The best corrosion resistance is obtained when the metal is hardened and subjected to surface grinding or polishing.
Product Parameters
|
Product Name |
420 Stainless Steel Plate |
|
Type |
Plate |
|
Thickness |
0.3mm-200mm |
|
Length |
2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
|
Width |
40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
|
Standard |
ASTM, AISI, JIS, GB, DIN, EN, etc. |
|
Surface |
BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
|
Scope of Application |
Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc. |
|
Certificate |
ISO, SGS, BV, etc. |
|
Production Technology |
Hot Rolling, Cold Rolling |
|
Edge Processing |
Edging, Trimming |
Chemical Composition
|
C |
Si |
Mn |
Cr |
S |
P |
|
≤ 0.15 |
≤1.0 |
≤1.0 |
12.0～14.0 |
≤ 0.03 |
≤ 0.04 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥634 |
≥440 |
≥20 |
Annealing≤ 223HB; quenching and tempering ≥ 192HB |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.74 |
200 |
10.2 |
24.9 |
55 |
Surface Selection
PACKING AND DELIVERY
Packing and delivery
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements. At the same time, thecompany has also established a complete after-sales service system to providecustomers with first-class services.
FACTORY APPEARANCE
Shandong Juhuo Special Steel Co., Ltd. is a comprehensive enterpriseintegrating steel supply and processing. The company has a large inventory ofvarious metal materials such as stainless steel, galvanized, profiles, aluminum.copper, lead, etc, which can meet the needs of customers in different fields.
APPLICATION AREAS
The company has strong strength and has a professional and technical teamwith excellent technology and rich experience.The company has also introduced advanced production equipment andprocessing technology, which can provide customers with steel products ofvarious specifications and processing requirements.
CUSTOMER VISIT
FAQ
Do you provide samples Is it free or extra?
A: Yes, we could offer free samples.
What certifications do your products have?
A: We have ISO 9001, SGS, EWC and other certifications.
What is the delivery time?
A: 10-15 days
What is your MOQ?
A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
Once the products received by customer were found not comply with the products or contract demands, what will you do?
A: We will compensate the customer for all the loss without any hesitation.
What kind of payment terms would you accept?
A: We always do T/T.30% T/T as deposit,70% T/T as balance.
